Precision Engineering for Linear Motion Systems

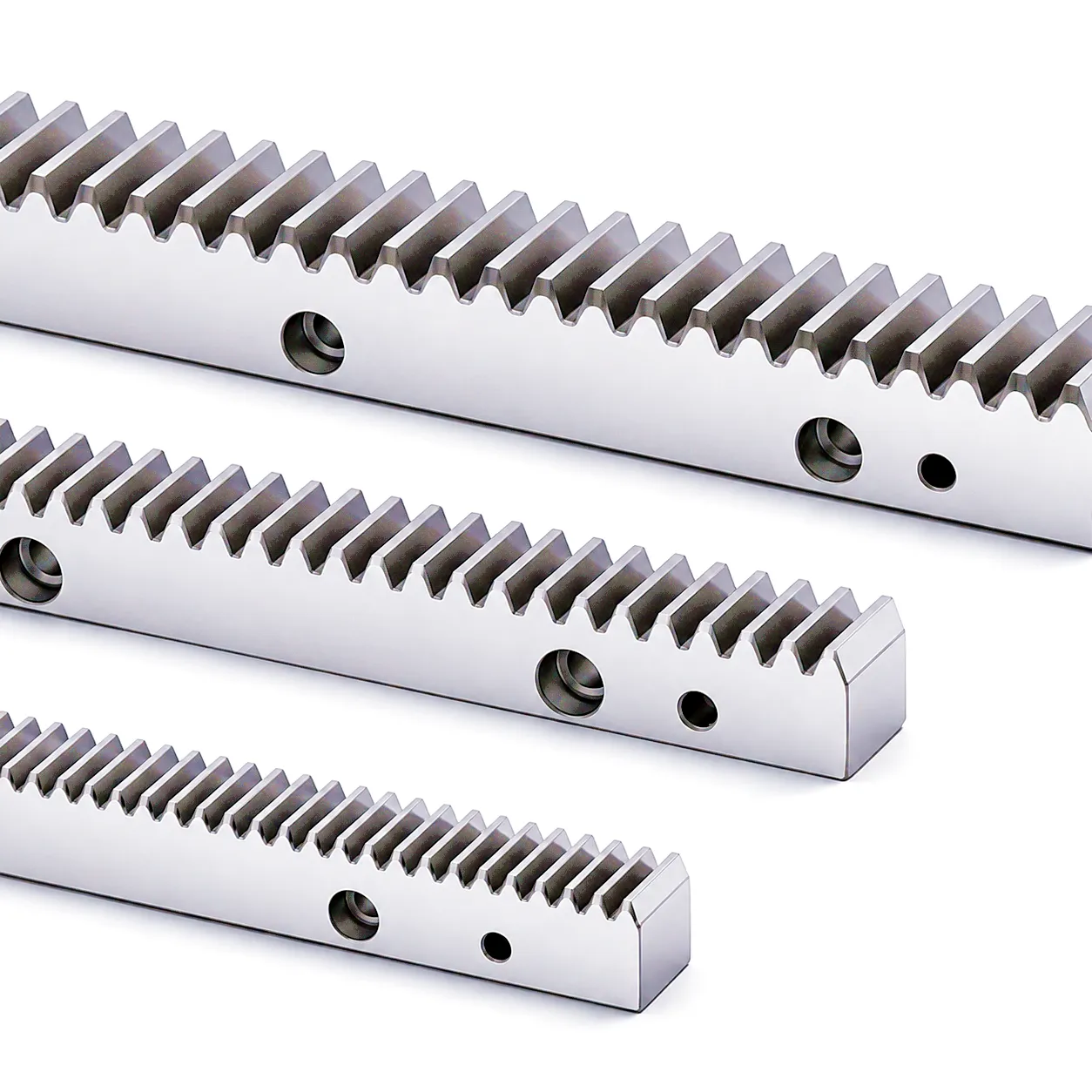

The Q&T straight rack represents a benchmark in precision mechanical components for UK manufacturers, machinery builders, and automation integrators. Manufactured from S45C medium-carbon steel and subjected to a full quench-and-temper (Q&T) heat treatment cycle, each rack achieves a consistent surface hardness of HB20–25, balancing wear resistance with machinability. The tooth profile conforms to DIN8 Grade 7 tolerances, ensuring smooth gear mesh and predictable transmission accuracy across the full working length. Four-side flat grinding and fine tooth cutting deliver a surface finish that reduces backlash to a minimum, making these straight racks equally at home in machine tool slideways, gantry systems, robotic transfer lines, and heavy-duty industrial doors. Whether you are sourcing components for a new CNC build or replacing worn racks in an existing conveyor system across England, Scotland, or Wales, this product line offers a broad module range—from Module 1.5 up to Module 12—to match virtually any design requirement without compromise on geometric accuracy or load capacity.
Why UK Engineers Specify This Straight Rack
DIN8 Grade 7 Tolerance
Tight tooth-spacing accuracy reduces cumulative pitch error (Fp) to as low as 0.066 mm on shorter racks, ensuring consistent transmission at higher speeds.
Q&T Heat Treatment
Full quench-and-temper processing gives the S45C body uniform toughness throughout. The result is superior impact resistance compared to surface-hardened alternatives.
Four-Side Flat Ground
All four faces are precision ground to guarantee mounting flatness and parallelism. This eliminates shimming time on the production line and improves repeatability.
Wide Module Range
Module options from 1.5 to 12 cover light-duty automation through heavy industrial drives, offering buyers a single trusted supplier across multiple project specifications.
Consistent Batch Quality
Every production batch undergoes dimensional inspection against DIN8 tolerance sheets. CMM reports are available on request for quality-critical OEM projects across the UK.
Stock & Custom Supply
Standard lengths of 500 mm and 1000 mm are held ready for dispatch. Non-standard lengths, special tooth profiles, and surface coatings are available as factory custom orders.
Material, Working Principle & Application Scenarios
◆ Material
S45C medium-carbon steel is selected for its reliable combination of tensile strength, machinability, and response to heat treatment. After Q&T processing the core maintains a ductile toughness (HB20–25) while resisting the surface fatigue that would affect an untreated steel rack. This makes it far better suited to cyclic loading than mild steel equivalents often supplied from lower-cost sources.
◆ Working Principle
A straight rack converts rotary motion—delivered by a mating gear or pinion—into precise linear displacement. The relationship Pe = Module x pi governs the tooth pitch, which directly determines the travel per pinion revolution. Controlling cumulative pitch error (Fp) to DIN8 Grade 7 limits ensures that position error remains predictable along the full rack length, which is critical in CNC table drives, laser cutting bridges, and portal crane traversal systems where positioning accuracy is non-negotiable.
◆ Application Scenarios
These straight racks find broad deployment across UK and European industries: CNC routing and milling machine axes, plasma and laser cutting tables, automated warehouse racking transfer systems, robotic welding gantries, hydraulic press ram guides, automated sliding gates in commercial and agricultural installations, and printing machine carriage drives. The modular range makes them straightforward to specify whether the application is in a Birmingham fabrication shop, a Scottish fish processing plant, or a Welsh agricultural equipment manufacturer.

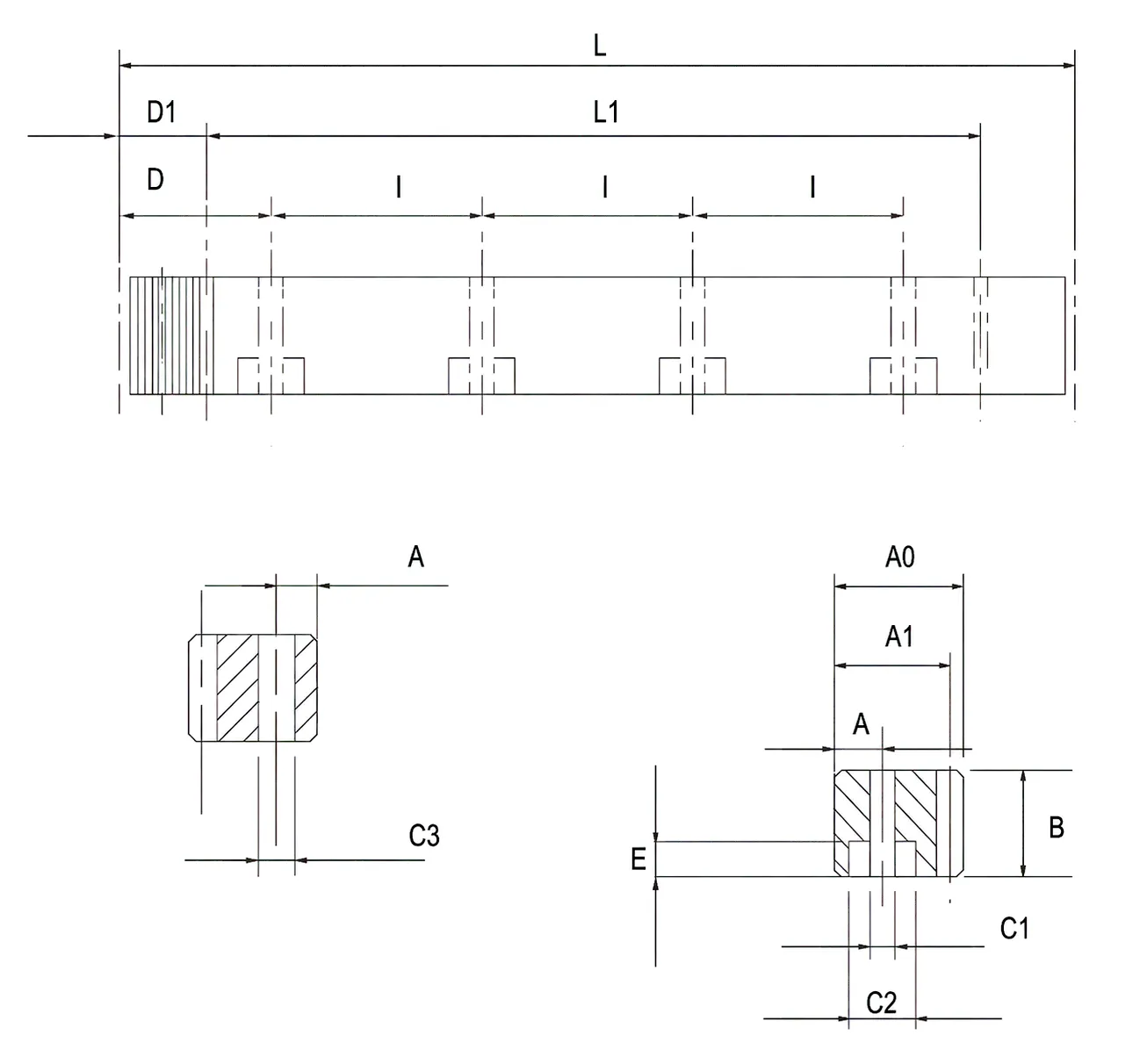

Technical Specifications
Pe = Module x π | Fp = Total Cumulative Pitch Error | Unit/Dimension: mm
| Code | Module | Pt | L | Tooth No. | B | A0 | A1 | D | I | Hole No. | A | C1 | C2 | E | D1 | I1 | C3 | Fp | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 661 | 010 | 050 | 1.5 | 4.7123 | 499.51 | 106 | 17 | 17 | 15.5 | 62.44 | 124.88 | 4 | 7 | 6 | 9.5 | 7 | 29 | 441.5 | 5.7 | 0.066 |
| 661 | 010 | 100 | 1.5 | 4.7123 | 999.03 | 212 | 17 | 17 | 15.5 | 62.44 | 124.88 | 8 | 7 | 6 | 9.5 | 7 | 29 | 941.0 | 5.7 | 0.074 |
| 661 | 015 | 050 | 1.5 | 4.7123 | 499.50 | 106 | 19 | 19 | 17.5 | 62.44 | 124.88 | 4 | 8 | 7 | 11 | 7 | 29 | 441.5 | 5.7 | 0.066 |
| 661 | 015 | 100 | 1.5 | 4.7123 | 999.03 | 212 | 19 | 19 | 17.5 | 62.44 | 124.88 | 8 | 8 | 7 | 11 | 7 | 29 | 941.0 | 5.7 | 0.074 |
| 661 | 020 | 050 | 2 | 6.2831 | 502.65 | 80 | 24 | 24 | 22 | 62.83 | 125.66 | 4 | 8 | 7 | 11 | 7 | 31.3 | 440.1 | 5.7 | 0.066 |
| 661 | 020 | 100 | 2 | 6.2831 | 1005.31 | 160 | 24 | 24 | 22 | 62.83 | 125.66 | 8 | 8 | 7 | 11 | 7 | 31.3 | 942.7 | 5.7 | 0.074 |
| 661 | 030 | 050 | 3 | 9.4247 | 508.94 | 54 | 29 | 29 | 26 | 63.62 | 127.23 | 4 | 9 | 10 | 15 | 9 | 34.4 | 440.1 | 7.7 | 0.066 |
| 661 | 030 | 100 | 3 | 9.4247 | 1017.88 | 108 | 29 | 29 | 26 | 63.62 | 127.23 | 8 | 9 | 10 | 15 | 9 | 34.4 | 949.1 | 7.7 | 0.072 |
| 661 | 040 | 050 | 4 | 12.5666 | 502.65 | 40 | 39 | 39 | 35 | 62.83 | 125.66 | 4 | 12 | 10 | 15 | 9 | 37.5 | 427.7 | 7.7 | 0.072 |
| 661 | 040 | 100 | 4 | 12.5666 | 1005.31 | 80 | 39 | 39 | 35 | 62.83 | 125.66 | 8 | 12 | 10 | 15 | 9 | 37.5 | 930.3 | 7.7 | 0.078 |
| 661 | 050 | 050 | 5 | 15.7079 | 502.65 | 32 | 49 | 39 | 34 | 62.83 | 125.66 | 4 | 12 | 14 | 20 | 13 | 30.1 | 442.4 | 11.7 | 0.072 |
| 661 | 050 | 100 | 5 | 15.7079 | 1005.31 | 64 | 49 | 39 | 34 | 62.83 | 125.66 | 8 | 12 | 14 | 20 | 13 | 30.1 | 945.0 | 11.7 | 0.078 |
| 661 | 060 | 050 | 6 | 18.8495 | 508.94 | 27 | 59 | 49 | 43 | 63.62 | 127.23 | 4 | 16 | 18 | 26 | 17 | 31.4 | 446.1 | 15.7 | 0.072 |
| 661 | 060 | 100 | 6 | 18.8495 | 1017.88 | 54 | 59 | 49 | 43 | 63.62 | 127.23 | 8 | 16 | 18 | 26 | 17 | 31.4 | 955.0 | 15.7 | 0.078 |
| 661 | 080 | 050 | 8 | 25.1327 | 502.65 | 20 | 79 | 79 | 71 | 62.83 | 125.66 | 4 | 25 | 22 | 33 | 21 | 26.6 | 449.5 | 19.7 | 0.08 |
| 661 | 080 | 100 | 8 | 25.1327 | 1005.31 | 40 | 79 | 79 | 71 | 62.83 | 125.66 | 8 | 25 | 22 | 33 | 21 | 26.6 | 952.0 | 19.7 | 0.085 |
| 661 | 100 | 100 | 10 | 31.4159 | 1005.31 | 32 | 99 | 99 | 89 | 62.83 | 125.66 | 8 | 32 | 33 | 48 | 32 | 125.67 | 754.0 | 19.7 | 0.09 |
| 661 | 120 | 100 | 12 | 37.6991 | 1017.88 | 27 | 120 | 120 | 108 | 63.6 | 127.23 | 8 | 40 | 39 | 58 | 38 | 127.23 | 763.4 | 19.7 | 0.09 |
