V Grinding Guide Rails
Ground to 55–60 HRC. Built for British Industry.
Four-face ground V-profile guides engineered for high-load, high-precision linear motion — trusted by automation engineers, machine builders, and OEM manufacturers across the United Kingdom.
The V grinding guide represents a mature solution to a persistent engineering challenge: how do you deliver repeatable, low-friction linear travel in environments where contamination, vibration, and sustained loading are facts of life? The answer lies in geometry and surface hardness working together. The V-profile cross-section channels contact forces into a defined groove geometry, distributing load without relying on flat-surface parallelism that tolerates almost no error. Combined with induction-hardened guideways reaching HRC 55–60, and four-face precision grinding across every reference surface, the result is a component that holds its accuracy long after conventional guides have drifted.
Why V Grinding Guides Outperform Standard Rails
Flat-profile linear rails depend on surface flatness and precise parallelism — tolerances that erode under load and thermal cycling. The V-groove geometry of these guides is self-referencing: the sliding element seats into the groove and self-centres under load, so minor variations in mounting do not translate into positioning drift. This makes them particularly valuable in agricultural machinery assembly lines, timber processing equipment, and industrial printing presses where re-calibration downtime is commercially punishing. For British manufacturers operating in sectors where EN/ISO positional repeatability standards are contractual requirements, the V grinding guide provides a direct route to compliance without exotic tooling or complex assembly procedures. The rail’s S45C/42CrMo steel substrate also delivers the tensile backbone needed to resist bending in long spans — a genuine advantage in gantry and portal machine configurations common in UK fabrication workshops.
Self-Centering V Profile
The groove geometry forces the mating runner to self-align under load, eliminating the cumulative error of flat-rail parallelism over time or across thermal cycles.
HRC 55–60 Induction Hardened
V-profile guideways are induction-hardened to HRC 55–60 while body hardness targets HRC 48–52, balancing wear resistance with substrate toughness for shock-load environments.
Four-Face Precision Ground
All four reference faces are precision ground — not just the V-profile — ensuring mounting surfaces are co-planar and eliminating the rocking that undermines accuracy in single-face ground alternatives.
Material, Hardness & Manufacturing Process
Material selection begins with S45C and 42CrMo steel — two grades that dominate precision linear component manufacture globally because they respond predictably to heat treatment and maintain dimensional stability post-grinding. S45C, a medium-carbon structural steel, provides an excellent baseline for general industrial applications where moderate impact loads are expected alongside sustained sliding contact. 42CrMo introduces chromium and molybdenum additions that sharpen hardenability and improve fatigue resistance — the grade of choice when the application involves cyclic loading, as in automated stamping feeds or CNC router gantries. Induction hardening targets the V guideway surface specifically, driving hardness into the HRC 55–60 range at the contact zone while preserving a tougher, more ductile core beneath. Final grinding is performed on all four faces in a single set-up where possible, controlling squareness between the mounting base and the guideway axis to tolerances measured in micrometres rather than hundredths of a millimetre.
| Property | Specification |
|---|---|
| Material | S45C / 42CrMo |
| Body Hardness | HRC 48–52 (induction treated) |
| V-Guideway Surface Hardness | HRC 55–60 (high-frequency induction) |
| Manufacturing Process | Four-face grinding + V-guideway surface grinding |
| Unit / Dimension | mm |
Technical Specifications
Unit / Dimension: mm | All models subject to change — confirm before ordering.

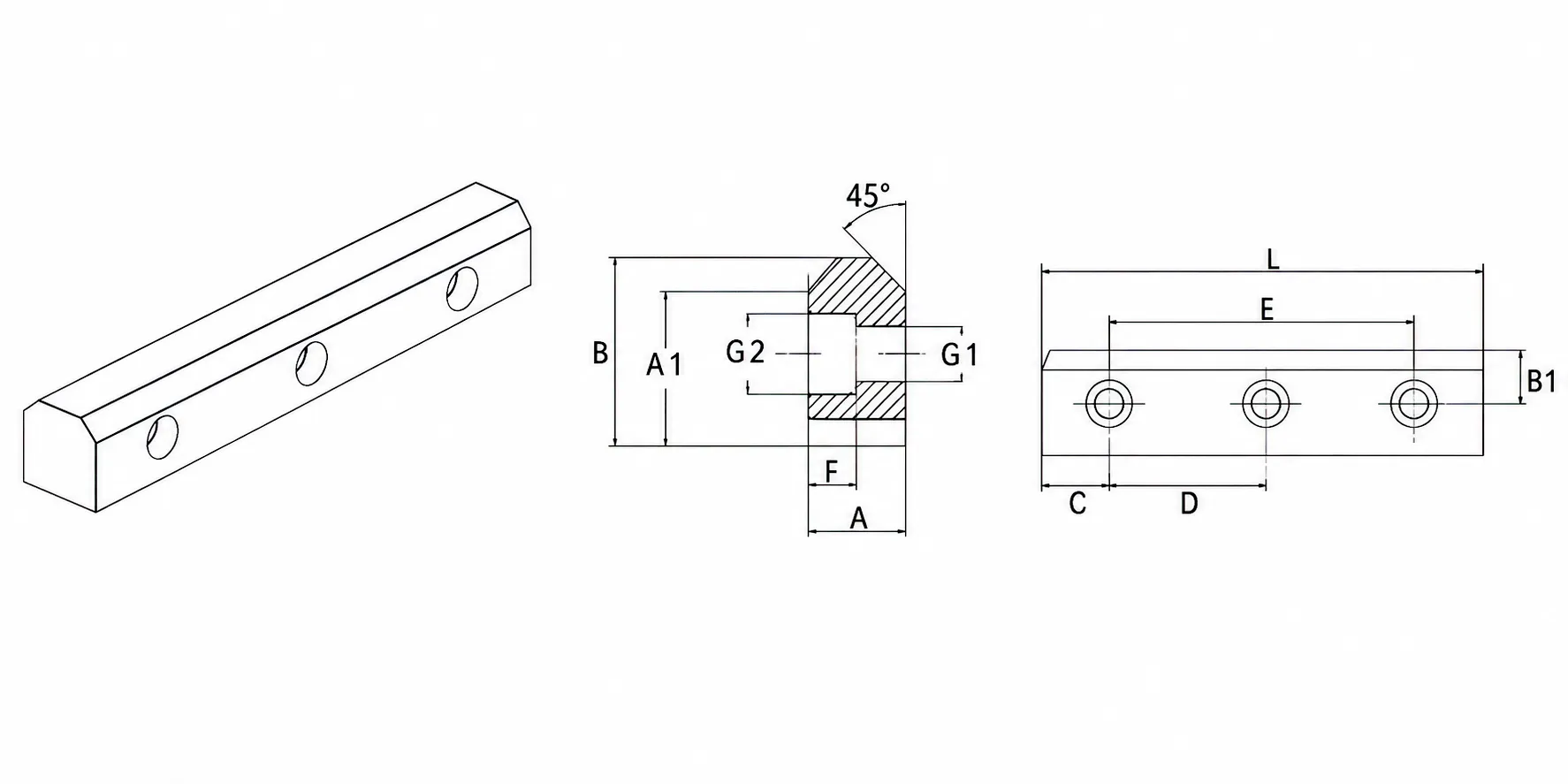

| Code | L | A | B | C | D | B1 | A1 | G1 | G2 | F | E |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VX55315063 | 630 | 14.5 | 24.5 | 15 | 100 | 13 | 20 | 7 | 11 | 7 | 600 |
| VX55315103 | 1030 | 14.5 | 24.5 | 15 | 100 | 13 | 20 | 7 | 11 | 7 | 1000 |
| VX55320063 | 630 | 19.5 | 29.5 | 15 | 100 | 15.5 | 23.5 | 9 | 15 | 9 | 600 |
| VX55320103 | 1030 | 19.5 | 29.5 | 15 | 100 | 15.5 | 23.5 | 9 | 15 | 9 | 1000 |
| VX55325063 | 630 | 24.7 | 33 | 15 | 100 | 18.5 | 25.2 | 9 | 15 | 9 | 600 |
| VX55325093 | 930 | 24.7 | 33 | 15 | 100 | 18.5 | 25.2 | 9 | 15 | 9 | 900 |
| VX55325123 | 1230 | 24.7 | 33 | 15 | 100 | 18.5 | 25.2 | 9 | 15 | 9 | 1200 |
| VX55335063 | 630 | 34.6 | 46.6 | 15 | 100 | 28.6 | 36.7 | 11 | 18 | 11 | 600 |
| VX55335093 | 930 | 34.6 | 46.6 | 15 | 100 | 28.6 | 36.7 | 11 | 18 | 11 | 900 |
| VX55335123 | 1230 | 34.6 | 46.6 | 15 | 100 | 28.6 | 36.7 | 11 | 18 | 11 | 1200 |
* All model numbers and parameters are subject to change without prior notice. Please confirm with us before placing an order.
Where Are V Grinding Guides Used in UK Industry?
V grinding guides appear in any application where sustained linear travel, reasonable load capacity, and protection against contamination need to coexist without complicated sealing arrangements. The self-channelling nature of the groove is itself a degree of contamination protection — swarf and dust tend to be pushed out of the contact zone rather than compacted against it. Across the United Kingdom, these components are specified in CNC router beds in furniture manufacturing workshops in the West Midlands, in granite surface-plate coordinate measuring machines used by aerospace sub-contractors in Bristol, and in textile processing equipment throughout Yorkshire mill conversions. They also appear in agricultural machinery drivetrain test rigs and specialist conveyor systems handling bulk materials such as aggregate and grain. The compact cross-section geometry means V grinding guides can be fitted into machine designs where a profile linear rail simply does not have the envelope clearance, making them particularly useful in retrofitting older capital equipment to modern precision standards without major structural redesign.
🔧 CNC Machine Tools
Router beds, grinding machine tables, and milling fixture slides requiring micrometre-level repeatability.
✈ Aerospace Sub-Assembly
Jig tables and coordinate measuring fixtures where positional accuracy is auditable and load capacity must accommodate heavy tooling.
🚊 Agricultural Machinery
Seeder slide mechanisms, hay-press linear feeds, and combine-header alignment guides operating in dusty outdoor environments.
🏭 Automated Packaging Lines
High-cycle filling machine sliders and label applicator carriages demanding consistent travel under variable product weights.
Related Precision Linear Products
For applications where the motion path is a straight axis and the tooth-driven element needs the same precision as the guiding surface, our rack range provides a complementary solution. The Q&T Straight Rack delivers quench-and-tempered consistency ideal for general-purpose linear drives. Where sub-millimetre tooth positioning is required, the Precision Ground Straight Rack is ground to tight pitch tolerances and pairs directly with precision pinions for CNC axis drives, robotic gantries, and measurement systems. Both products are available with UK-standard mounting hole patterns and can be quoted alongside V grinding guides for complete linear motion package pricing.
Customer Success: Coventry Robotics Integrator
West Midlands, United Kingdom · Automated Welding Cell Integration
A Coventry-based systems integrator building a six-station automated MIG welding cell needed a linear guide solution that could operate reliably in a 55°C ambient environment with weld spatter risk. Their previous flat-rail setup required cleaning every 40 hours of operation and was causing positioning drift that fell outside the ±0.15 mm tolerance demanded by their automotive body-panel customer. After switching to V grinding guides in the VX55325 series across all six stations, their maintenance interval extended to over 300 hours, and positional repeatability consistently measured within ±0.06 mm across a 12-week production validation run.
Customer reference available on request under NDA.
★★★★★
“We’ve trialled three guide brands in the last five years. These are the only ones that maintained their tolerance window across a full season of two-shift production without any shimming adjustments.”
— Production Engineering Manager, West Midlands Automation
★★★★★
“The V-profile self-aligns so reliably that our assembly team stopped needing a dial indicator to set the runner gap. That alone has cut our machine assembly time by about 40 minutes per axis.”
— Head of Mechanical Design, Yorkshire CNC Machinery OEM
★★★★★
“We export agricultural conveyor systems across the EU. The price-to-specification ratio on these guides is unmatched by any European-stocked alternative we’ve found, and lead times to our Bristol warehouse have been consistently under four weeks.”
— Procurement Director, South West Agricultural Equipment Exporter
Factory Capability & Product Customisation
Our manufacturing facility operates surface grinding equipment with a working envelope capable of handling rails up to 2,000 mm in a single pass — well beyond the standard catalogue lengths listed above. For UK customers with non-standard requirements, our engineering team provides full customisation support: bespoke lengths, modified cross-section proportions, alternative steel grades, special hole patterns, or surface treatments such as black oxide or hard chrome for corrosion resistance in food-processing or outdoor environments. Custom projects are quoted with 3D DXF reference files, and first-article samples are dispatched for customer inspection before series production begins. We hold ISO 9001-aligned documentation for all production batches, making our components compatible with CE-marked machinery declarations of conformity. Minimum custom order quantities are negotiable for UK OEMs running ongoing production programmes — contact our sales team to discuss your application parameters.
